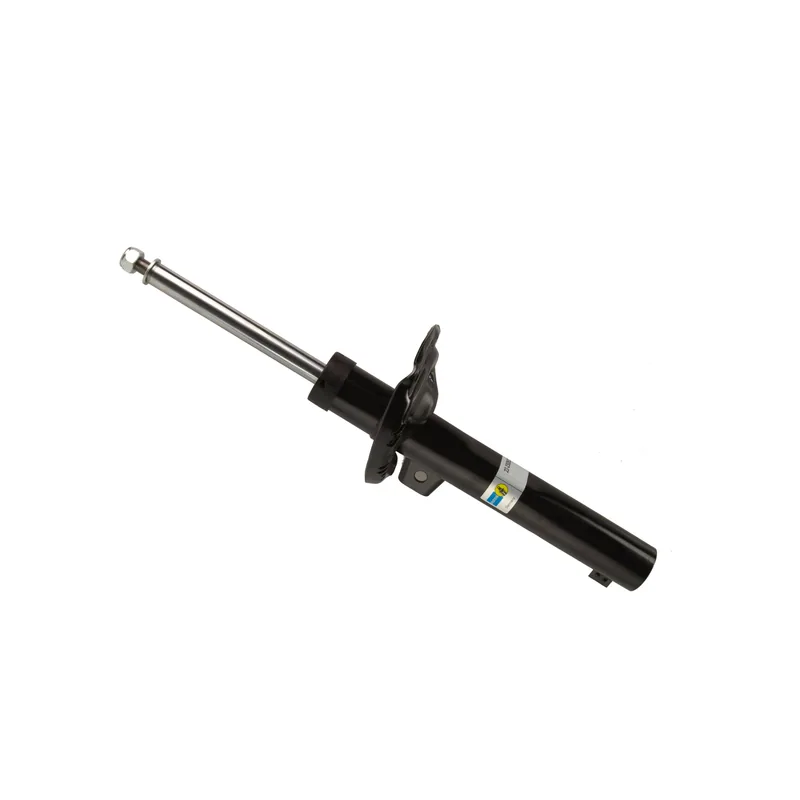

Bilstein 22-230522 B4 OE Replacement Strut Assembly

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Volkswagen 5Q0 413 023 EP, Volkswagen 5Q0 413 023 EQ, Volkswagen 5Q0 413 023 ER, Volkswagen 5Q0 413 023 FH, Volkswagen 5Q0 413 023 FJ, Volkswagen 5Q0 413 023 FK and 4 more
Volkswagen 5QM 413 023 AB, Volkswagen 5QM 413 023 AJ, Volkswagen 5QM 413 023 AK, Volkswagen 5QM 413 023 K
Country of origin: Romania
Box: Ships in Bilstein's own box (about 63 × 20 × 16 cm, 4.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

50 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Audi A3	Years	2015	Submodels	TDI Premium, TDI Premium Plus, TDI Prestige	Position	Front	Drive / body / engine	All	Notes	Standard Suspension without Electronic Suspension. With 50mm Outside Strut Diameter. With Sport Suspension and With 50mm Outside Strut Diameter. Check which applies
Volkswagen e-Golf	Years	2018–2019	Submodels	SE, SEL Premium	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen e-Golf	Years	2017	Submodels	Limited Edition, SE, SEL Premium	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen e-Golf	Years	2016	Submodels	SE, SEL Premium	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen e-Golf	Years	2015	Submodels	Limited Edition, SEL Premium	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf	Years	2020–2021	Submodels	TSi	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf	Years	2018–2019	Submodels	S, SE	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf	Years	2017	Submodels	S, Wolfsburg Edition	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf	Years	2016	Submodels	Base, S, SE, SEL	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf	Years	2015	Submodels	Launch Edition, S, SE, SEL, TDI S, TDI SE, TDI SEL	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf SportWagen	Years	2019	Submodels	S, SE	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf SportWagen	Years	2016–2018	Submodels	S, SE, SEL	Position	Front	Drive / body / engine	All	Notes	—
Volkswagen Golf SportWagen	Years	2015	Submodels	S, SE, SEL, TDI S, TDI SE, TDI SEL	Position	Front	Drive / body / engine	All	Notes	—

Specifications

As Bilstein publishes them.

Extended Length (in): 21.61
Collapsed Length (in): 15.08
Extended Length (mm): 549.0
Collapsed Length (mm): 383.0
Upper Mount Type: Stem
Lower Mount Type: Base Cup
Internal Design: Twintube
Finish: Black Paint
Boot Included: No
Spring Seat Included: Yes - Fixed
Outer Housing Diameter: 50mm

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
