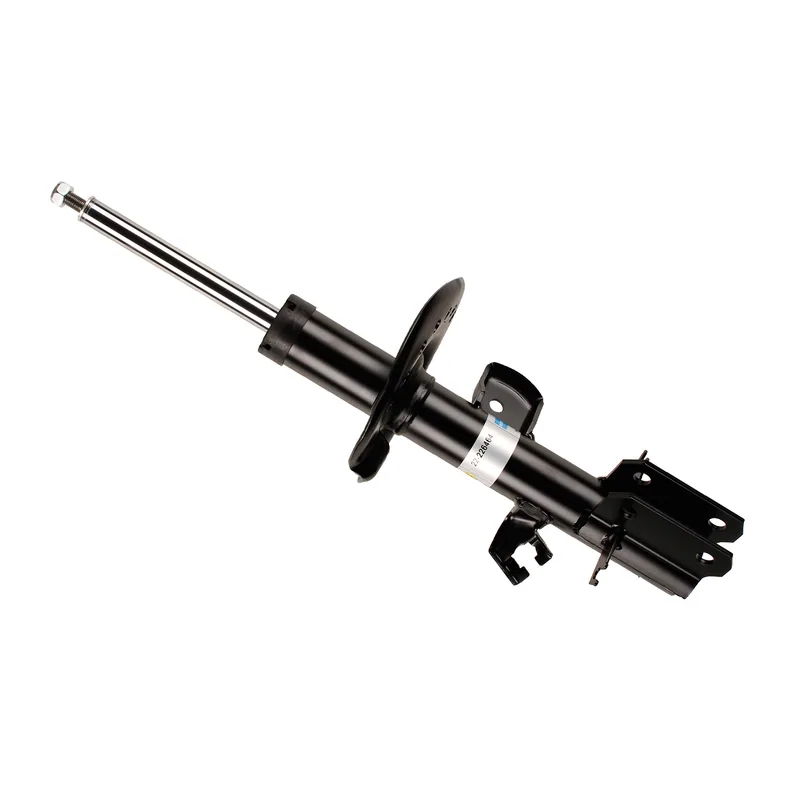

Bilstein 22-226464 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-226471 B4 OE Replacement Strut Assembly (Front right)
- Replaces OE
- Nissan E4303 1KC2A, Nissan E4303 1KC2B, Nissan E4303 3YV0A, Nissan E4303 3YV1A, Nissan E4303 3YW0A, Nissan E4303 3YW1A
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 64 × 20 × 16 cm, 5.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
30 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Nissan Juke | 2014–2017 | Nismo, Nismo RS, S, SL, SV | Front left | All | — |
| Nissan Juke | 2013 | Nismo, S, SL, SV | Front left | All | — |
| Nissan Juke | 2011–2012 | S, SL, SV | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.93
- Collapsed Length (in)
- 15.45
- Extended Length (mm)
- 557.0
- Collapsed Length (mm)
- 392.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
