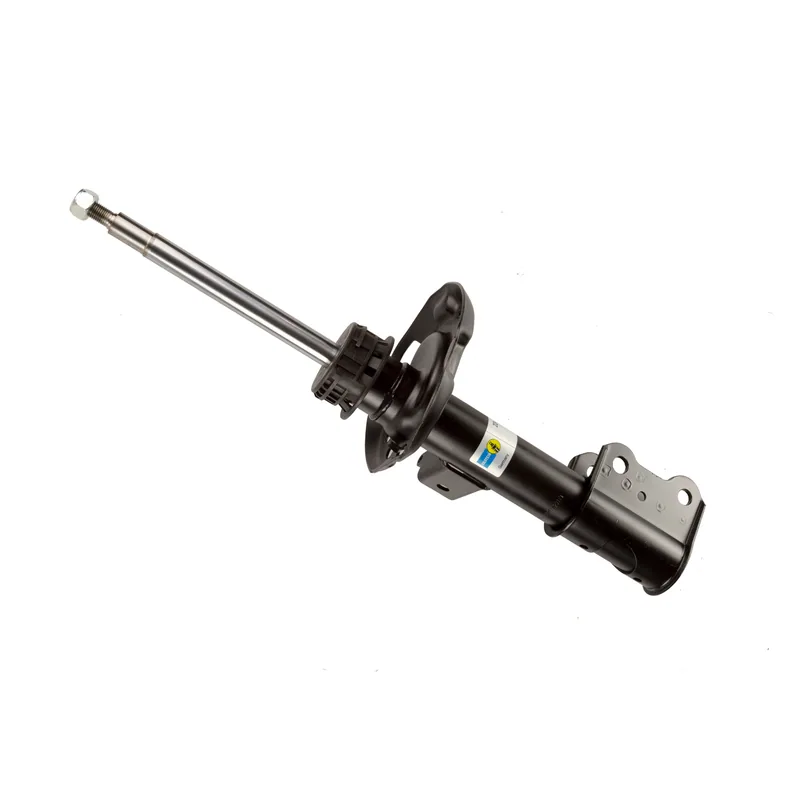

Bilstein 22-220127 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-220103 B4 OE Replacement Strut Assembly (Front left)
- 22-230935 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- Mercedes-Benz 117 323 16 00, Mercedes-Benz 117 323 24 00, Mercedes-Benz 117 323 26 00, Mercedes-Benz 117 323 44 00, Mercedes-Benz 176 323 46 00, Mercedes-Benz 246 323 30 00, Mercedes-Benz 246 323 30 00 80, Mercedes-Benz 246 323 36 00
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 62 × 20 × 16 cm, 5.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
12 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mercedes-Benz CLA250 | 2016–2019 | 4Matic, Base | Front right | All |
|
| Mercedes-Benz CLA250 | 2014–2015 | 4Matic, Base | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.14
- Collapsed Length (in)
- 14.45
- Extended Length (mm)
- 537.0
- Collapsed Length (mm)
- 367.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
