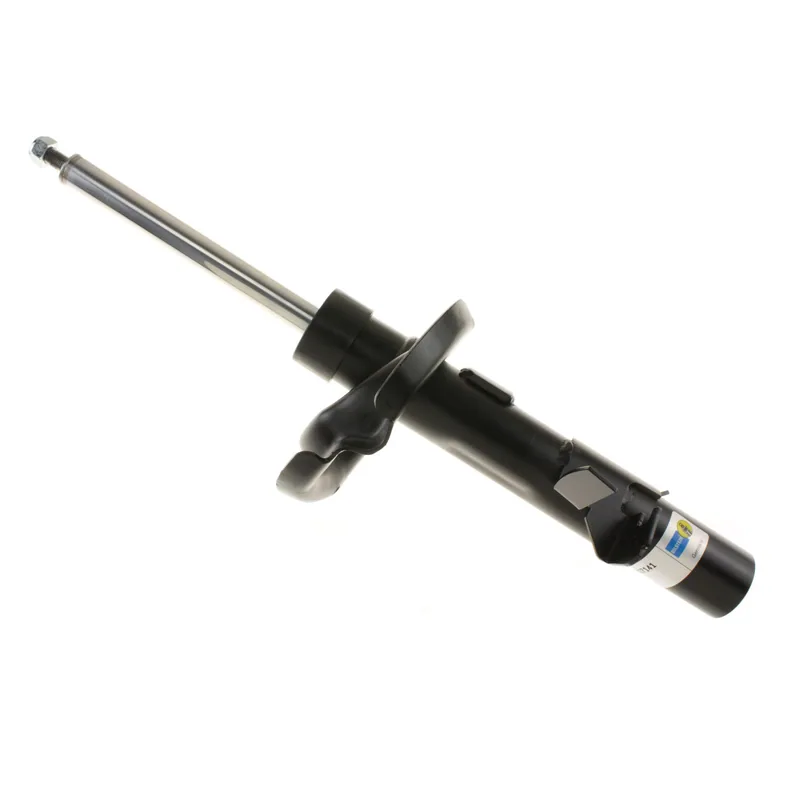

Bilstein 22-217141 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-217134 B4 OE Replacement Strut Assembly (Front left)
- 22-220530 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
Ford 1709762, Ford 1710076, Ford 1722082, Ford 1731866, Ford BV61-18045-AAC, Ford BV61-18045-ABC and 7 more
Ford BV61-18045-ACD, Ford BV61-18045-ADA, Ford BV6Z 18124-L, Ford CV6Z 18124-B, Ford CV6Z 18124-R, Ford FV6Z 18124-B, Ford FV6Z 18124-D
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 54 × 20 × 16 cm, 4.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
27 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford C-Max | 2018 | Hybrid SE, Hybrid Titanium | Front right | All | — |
| Ford C-Max | 2017 | Energi SE, Energi Titanium, Hybrid SE, Hybrid Titanium | Front right | All | — |
| Ford C-Max | 2013–2016 | Energi SEL, Hybrid SE, Hybrid SEL | Front right | All | — |
| Ford Focus | 2013 | Electric, S, SE, Titanium | Front right | All |
|
| Ford Focus | 2012 | Electric, S, SE, SEL, Titanium | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 17.91
- Collapsed Length (in)
- 11.34
- Extended Length (mm)
- 455.0
- Collapsed Length (mm)
- 288.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
