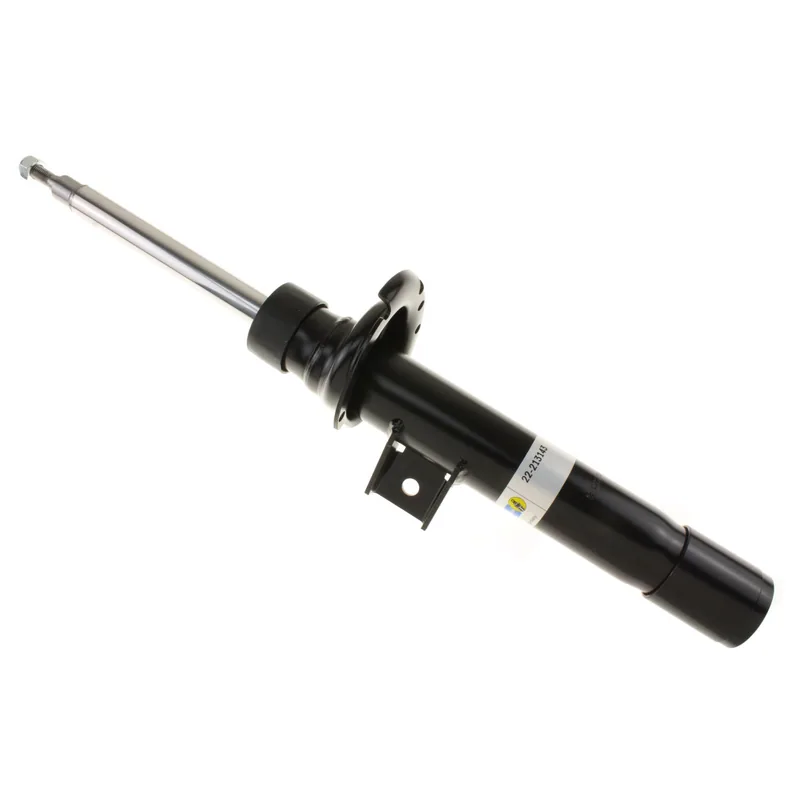

Bilstein 22-213143 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-213136 B4 OE Replacement Strut Assembly (Front left)
- 22-197672 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
- BMW 31 31 6 796 418, BMW 37 11 6 872 326
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 68 × 20 × 16 cm, 4.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
29 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| BMW X3 | 2015–2017 | sDrive28i, xDrive28d, xDrive28i, xDrive35i | Front right | All |
|
| BMW X3 | 2011–2014 | xDrive28i, xDrive35i | Front right | All |
|
| BMW X4 | 2017–2018 | M40i, xDrive28i | Front right | All |
|
| BMW X4 | 2016 | M40i, xDrive28i, xDrive35i | Front right | All |
|
| BMW X4 | 2015 | xDrive28i, xDrive35i | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.27
- Collapsed Length (in)
- 15.75
- Extended Length (mm)
- 591.0
- Collapsed Length (mm)
- 400.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
