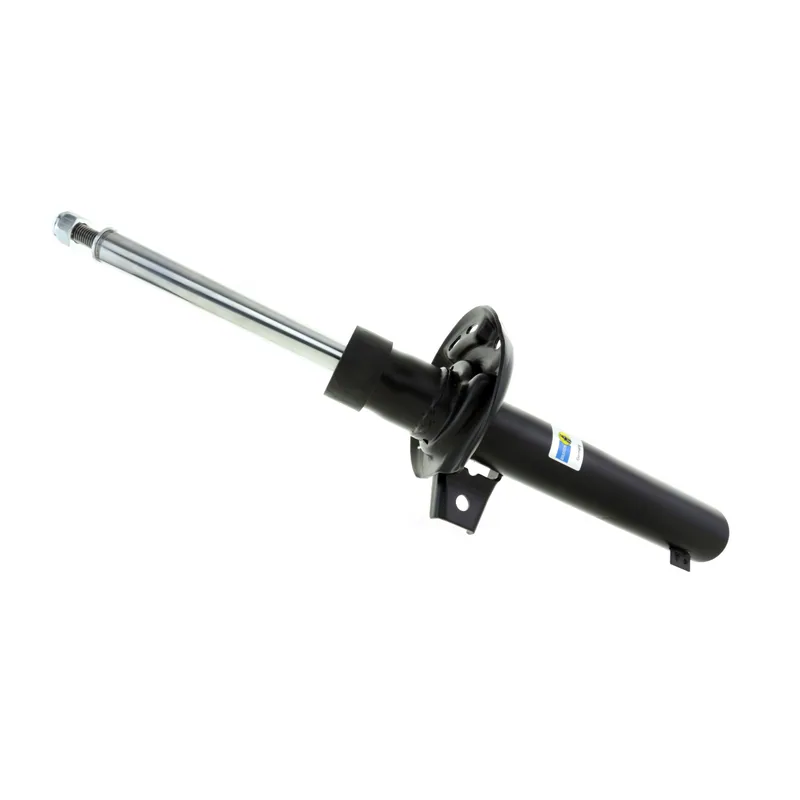

Bilstein 22-183729 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Volkswagen 1T0 413 031 DT, Volkswagen 1T0 413 031 EG, Volkswagen 1T0 413 031 EH, Volkswagen 1T0 413 031 HK, Volkswagen 1T0 413 031 HL, Volkswagen 1T0 413 031 HM and 9 more
Volkswagen 1T0 413 031 HN, Volkswagen 1T0 413 031 HP, Volkswagen 1T0 413 031 Q, Volkswagen 5C0 413 031 AF, Volkswagen 5C0 413 031 BL, Volkswagen 5C0 413 031 BN, Volkswagen 5C0 413 031 CS, Volkswagen 5C0 413 031 EC, Volkswagen 5C0 413 031 T
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 64 × 20 × 16 cm, 4.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
79 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen Beetle | 2019 | Dune, Final Edition SE, Final Edition SEL, S, SE | Front | All | — |
| Volkswagen Beetle | 2018 | Coast, Dune, S, SE | Front | All | — |
| Volkswagen Beetle | 2017 | #PinkBeetle, Classic, Dune, R-Line SEL, S, SE, SEL | Front | All | — |
| Volkswagen Beetle | 2016 | Denim, Dune, Fleet Edition, R-Line S, R-Line SE, R-Line SEL, S, SE, SEL, Wolfsburg Edition | Front | All | — |
| Volkswagen Beetle | 2015 | Base, Classic, Fleet Edition, R-Line, TDI | Front | All | — |
| Volkswagen Beetle | 2014 | Base, GSR, R-Line, TDI | Front | All | — |
| Volkswagen Beetle | 2013 | Base, R-Line, TDI, Turbo | Front | All | — |
| Volkswagen Beetle | 2012 | Base, Turbo | Front | All | — |
| Volkswagen Eos | 2016 | Komfort | Front | All | — |
| Volkswagen Eos | 2015 | Executive, Final Edition, Komfort | Front | All | — |
| Volkswagen Eos | 2014 | Executive, Komfort, Sport | Front | All | — |
| Volkswagen Eos | 2013 | Executive, Komfort, Lux, Sport | Front | All | — |
| Volkswagen Eos | 2012 | Executive, Komfort, Lux | Front | All | — |
| Volkswagen Eos | 2009–2011 | Komfort, Lux | Front | All | — |
| Volkswagen Eos | 2008 | Komfort, Lux, Turbo, VR6 | Front | All |
|
| Volkswagen Golf | 2010–2014 | Base, TDI | Front | All |
|
| Volkswagen Rabbit | 2008–2009 | S | Front | All | — |
| Volkswagen Rabbit | 2006–2007 | 2.5 | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.75
- Collapsed Length (in)
- 14.84
- Extended Length (mm)
- 552.5
- Collapsed Length (mm)
- 377.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 55mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
