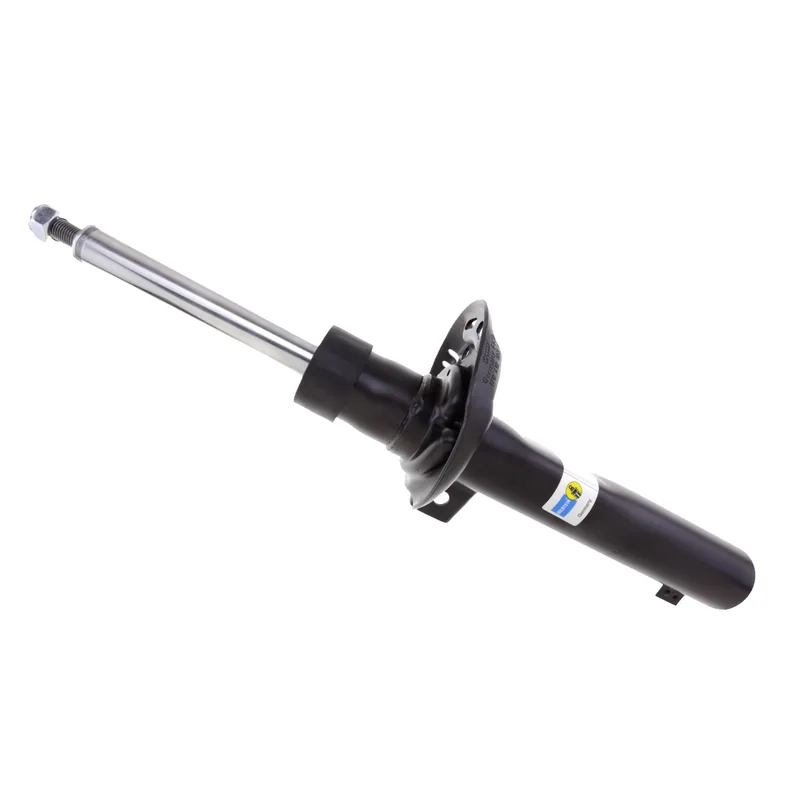

Bilstein 22-170071 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Audi 8J0 413 029 G, Audi 8J0 413 029 N, Audi 8J0 413 031 AA, Audi 8J0 413 031 AD, Audi 8J0 413 031 M, Audi 8J0 413 031 N and 5 more
Audi 8J0 413 031 P, Audi 8J0 413 031 Q, Audi 8J0 413 031 R, Audi 8J0 413 031 S, Audi 8J0 413 031 T
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 61 × 20 × 16 cm, 4.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
15 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi TT | 2008–2009 | Base | Front | All |
|
| Audi TT Quattro (AWD) | 2015 | Base | Front | All |
|
| Audi TT Quattro (AWD) | 2014 | Base, S Line | Front | All |
|
| Audi TT Quattro (AWD) | 2012–2013 | Base, Premium Plus, Prestige | Front | All |
|
| Audi TT Quattro (AWD) | 2008–2011 | Base | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.65
- Collapsed Length (in)
- 14.49
- Extended Length (mm)
- 524.5
- Collapsed Length (mm)
- 368.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 50mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
