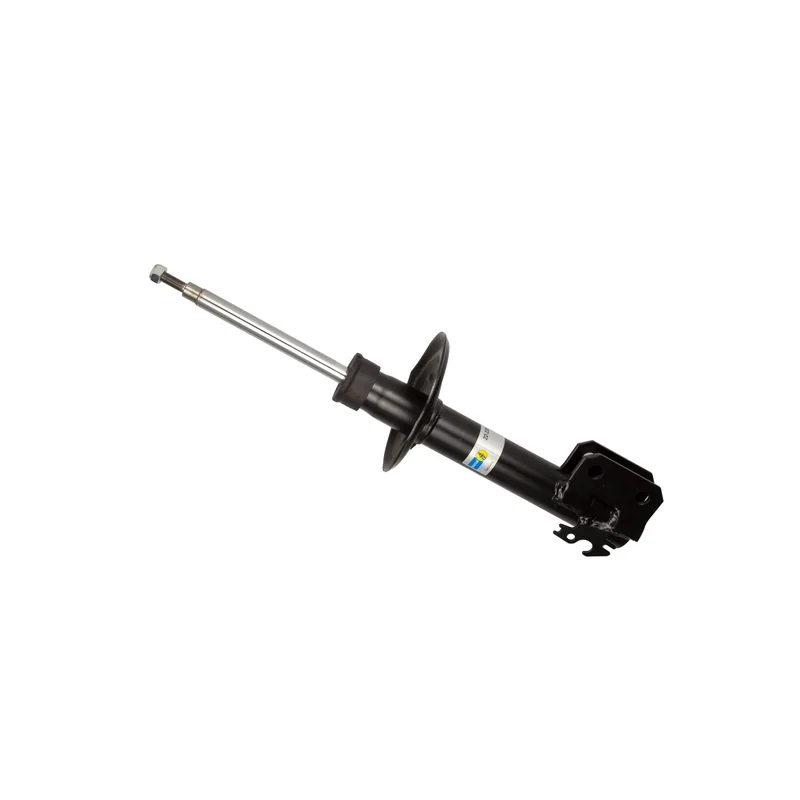

Bilstein 22-167019 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-230676 B4 OE Replacement Strut Assembly (Front left)
- Replaces OE
Toyota 48510-0D400, Toyota 48510-0D420, Toyota 48510-0D430, Toyota 48510-0D770, Toyota 48510-0D880, Toyota 48510-0D881 and 8 more
Toyota 48510-0DA20, Toyota 48510-0DA21, Toyota 48510-52F92, Toyota 48510-52G10, Toyota 48510-52G11, Toyota 48510-52J20, Toyota 48510-52J21, Toyota 48510-WB004
- Replaces Bilstein
- 22-230683
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 62 × 20 × 16 cm, 4.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
29 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Yaris | 2019–2020 | L, LE, XLE | Front right | All | — |
| Toyota Yaris | 2013–2018 | L, LE, SE | Front right | All | — |
| Toyota Yaris | 2012 | Base, L, LE, SE | Front right | All | — |
| Toyota Yaris iA | 2018 | Base | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.10
- Collapsed Length (in)
- 14.41
- Extended Length (mm)
- 536.0
- Collapsed Length (mm)
- 366.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
