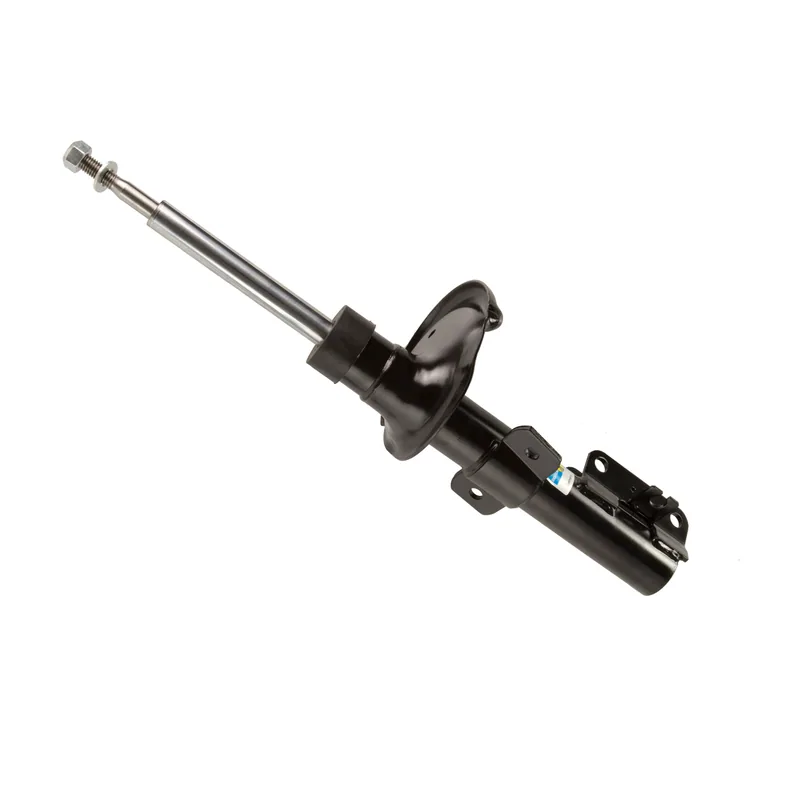

Bilstein 22-155344 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Volvo 30635211, Volvo 30760286, Volvo 8624604, Volvo 8646419, Volvo 8646420, Volvo 8646834 and 11 more
Volvo 8646871, Volvo 8646872, Volvo 8646927, Volvo 8646932, Volvo 8667248, Volvo 8667250, Volvo 8667252, Volvo 8667253, Volvo 9492564, Volvo 9492566, Volvo 9492567
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 61 × 20 × 16 cm, 5.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
59 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volvo S60 | 2006–2009 | T5 | Front | All | — |
| Volvo S60 | 2006–2009 | 2.5T | Front | FWD | — |
| Volvo S60 | 2004–2005 | 2.4, 2.5T, T5 | Front | All | — |
| Volvo S60 | 2001–2003 | 2.4T, Base, T5 | Front | All | — |
| Volvo S80 | 2006 | 2.5T | Front | All | — |
| Volvo S80 | 2005 | 2.5T, T6, T6 Premier | Front | All | — |
| Volvo S80 | 2004 | 2.5T, 2.9, T6 | Front | All | — |
| Volvo S80 | 1999–2003 | 2.9, T6 | Front | All | — |
| Volvo V70 | 2006–2007 | 2.4, 2.5T | Front | All | — |
| Volvo V70 | 2004–2005 | 2.4, 2.5T, T5 | Front | All | — |
| Volvo V70 | 2001–2003 | 2.4T, Base, T5 | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.71
- Collapsed Length (in)
- 14.17
- Extended Length (mm)
- 526.0
- Collapsed Length (mm)
- 360.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
