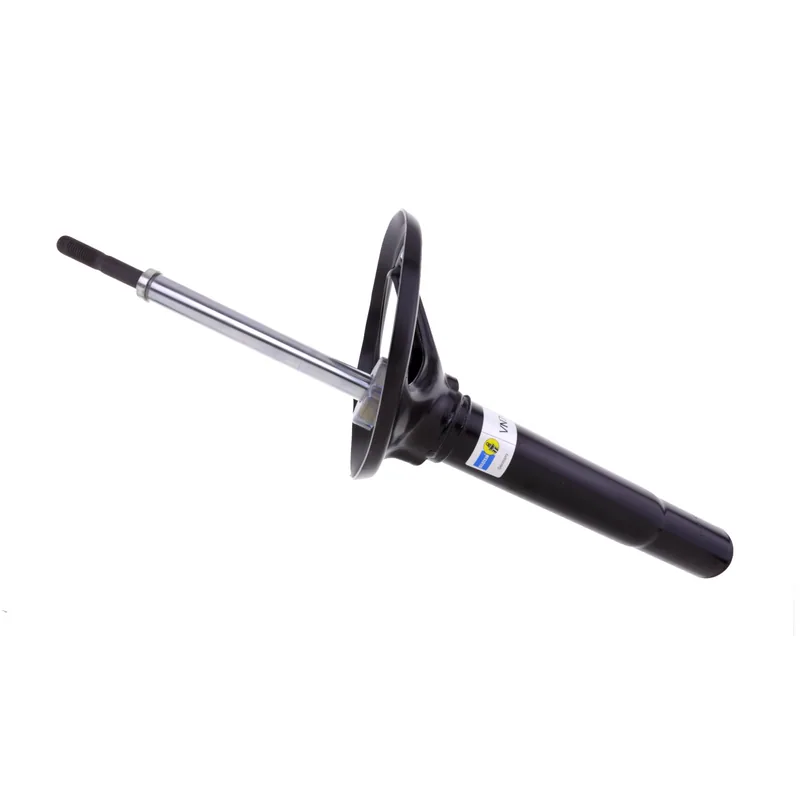

Bilstein 22-147509 B4 OE Replacement Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 22-147493 B4 OE Replacement Strut Assembly (Front left)
- 22-347848 B4 OE Replacement DampTronic Strut Assembly (Front left)
- Replaces OE
Porsche 997 343 044 02, Porsche 997 343 044 04, Porsche 997 343 044 06, Porsche 997 343 044 08, Porsche 997 343 050 03, Porsche 997 343 050 04 and 3 more
Porsche 997 343 050 10, Porsche 997 343 050 11, Porsche 997 343 050 12
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 45 × 20 × 16 cm, 4.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
15 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Porsche 911 | 2009–2012 | Carrera 4, Targa 4 | Front right | All |
|
| Porsche 911 | 2008 | Carrera 4, Carrera 4S, Targa 4, Targa 4S | Front right | All |
|
| Porsche 911 | 2007 | Carrera 4, Targa 4 | Front right | All |
|
| Porsche 911 | 2006 | Carrera 4 | Front right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 13.57
- Collapsed Length (in)
- 10.59
- Extended Length (mm)
- 344.8
- Collapsed Length (mm)
- 268.9
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
