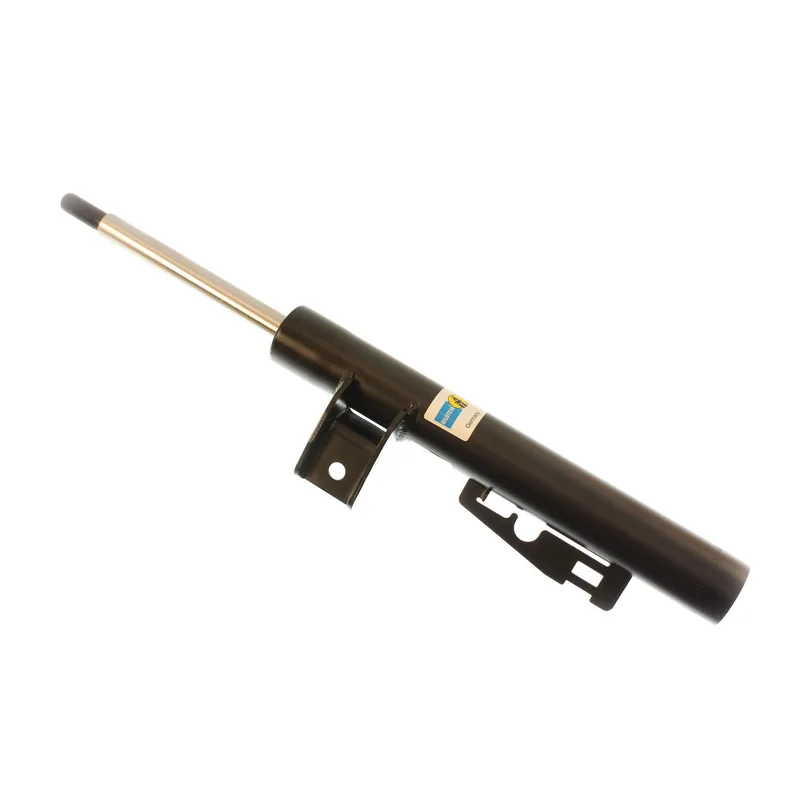

Bilstein 22-145697 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- smart 451 320 10 31, smart 451 320 11 31, smart 451 320 18 31, smart 451 320 25 31
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 45 × 20 × 16 cm, 2.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
30 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Smart Fortwo | 2016 | Electric Drive | Front | All | — |
| Smart Fortwo | 2011–2015 | Electric Drive, Passion, Passion Cabrio, Pure | Front | All | — |
| Smart Fortwo | 2008–2010 | Passion, Passion Cabrio, Pure | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 12.35
- Collapsed Length (in)
- 7.66
- Extended Length (mm)
- 313.8
- Collapsed Length (mm)
- 194.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Special
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- No - Reuse OEM
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
