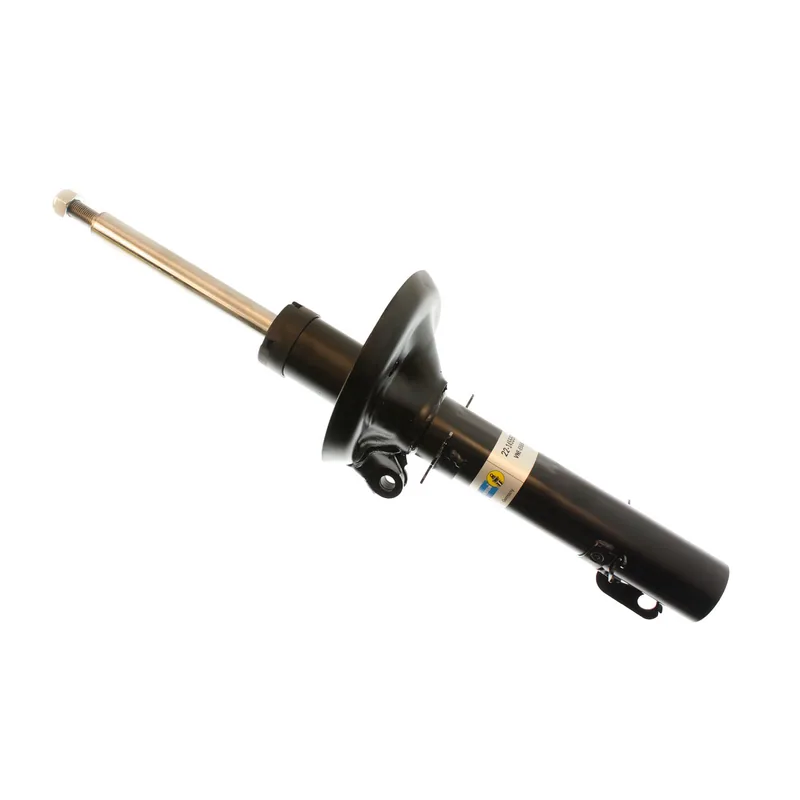

Bilstein 22-145550 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Audi 1J0 413 031 BF, Audi 1J0 413 031 DT, Audi 1J0 413 031 EA, Audi 1J0 413 031 EB, Audi 8N0 413 031 AD, Audi 8N0 413 031 D and 7 more
Audi 8N0 413 031 F, Audi 8N0 413 031 G, Audi 8N0 413 031 H, Audi 8N0 413 031 K, Audi 8N0 413 031 M, Audi 8N0 413 031 N, Audi 8N0 413 031 R
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 59 × 20 × 16 cm, 4.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
16 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi TT | 2000–2006 | Base | Front | All | — |
| Audi TT Quattro (AWD) | 2006 | Base, Special Edition | Front | All | — |
| Audi TT Quattro (AWD) | 2003–2005 | Base | Front | All | — |
| Audi TT Quattro (AWD) | 2002 | ALMS Edition, Base | Front | All | — |
| Audi TT Quattro (AWD) | 2000–2001 | Base | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.88
- Collapsed Length (in)
- 13.39
- Extended Length (mm)
- 505.0
- Collapsed Length (mm)
- 340.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Special
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 55mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
