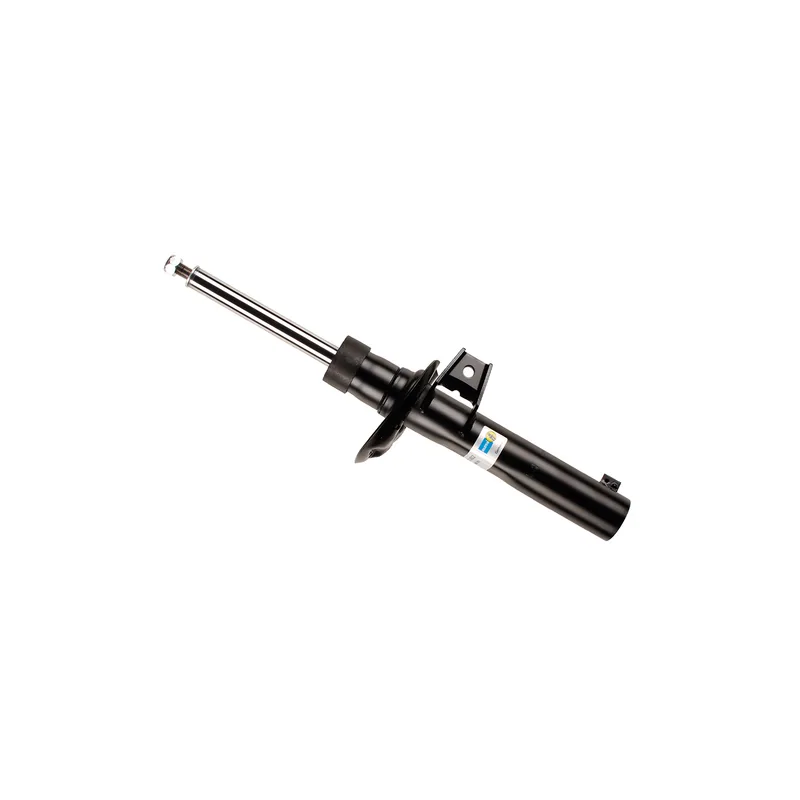

Bilstein 22-140012 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Volkswagen 1T0 413 031 EQ
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 64 × 20 × 16 cm, 4.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
11 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen GTI | 2014 | Drivers Edition, Wolfsburg Edition | Front | All | — |
| Volkswagen GTI | 2008–2013 | Base | Front | All | — |
| Volkswagen GTI | 2007 | Base, Fahrenheit | Front | All | — |
| Volkswagen GTI | 2006 | Base | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.75
- Collapsed Length (in)
- 14.84
- Extended Length (mm)
- 552.5
- Collapsed Length (mm)
- 377.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 55mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
