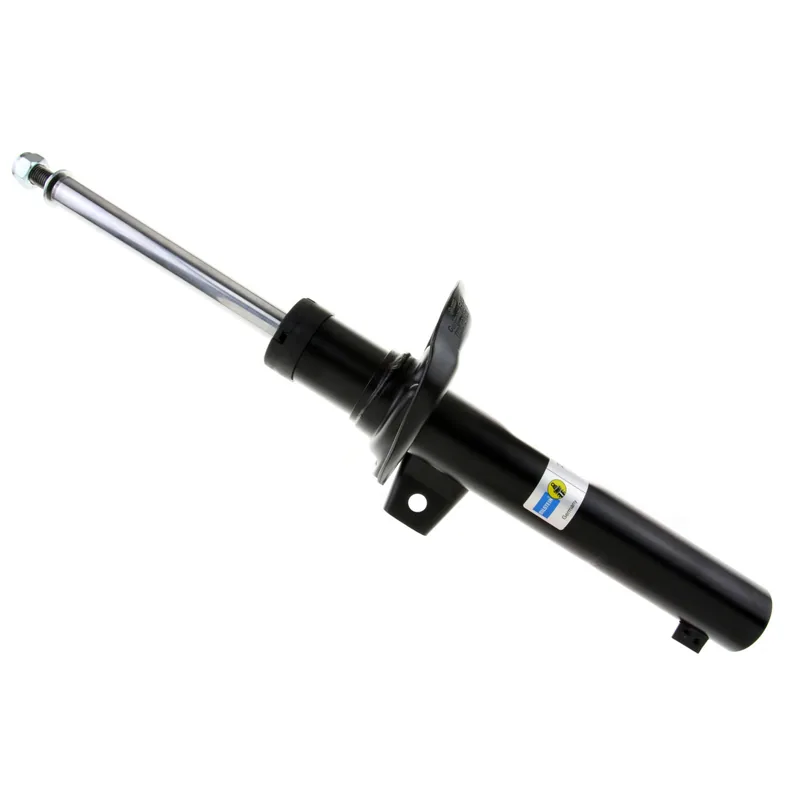

Bilstein 22-131607 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Volkswagen 1K0 413 031 AC, Volkswagen 1K0 413 031 AH, Volkswagen 1K0 413 031 AT, Volkswagen 1K0 413 031 BA, Volkswagen 1K0 413 031 BB, Volkswagen 1K0 413 031 BE and 7 more
Volkswagen 1K0 413 031 BF, Volkswagen 1K0 413 031 BG, Volkswagen 1K0 413 031 BH, Volkswagen 1K0 413 031 BJ, Volkswagen 1K0 413 031 BT, Volkswagen 5C0 413 031 AH, Volkswagen 5C0 413 031 AQ
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 64 × 20 × 16 cm, 4.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
13 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen Golf | 2010–2014 | Base, TDI | Front | All |
|
| Volkswagen Jetta | 2015 | Base, S | Front | All |
|
| Volkswagen Jetta | 2014 | S | Front | L4 2.0L |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.75
- Collapsed Length (in)
- 14.84
- Extended Length (mm)
- 552.5
- Collapsed Length (mm)
- 377.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Base Cup
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 50mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
