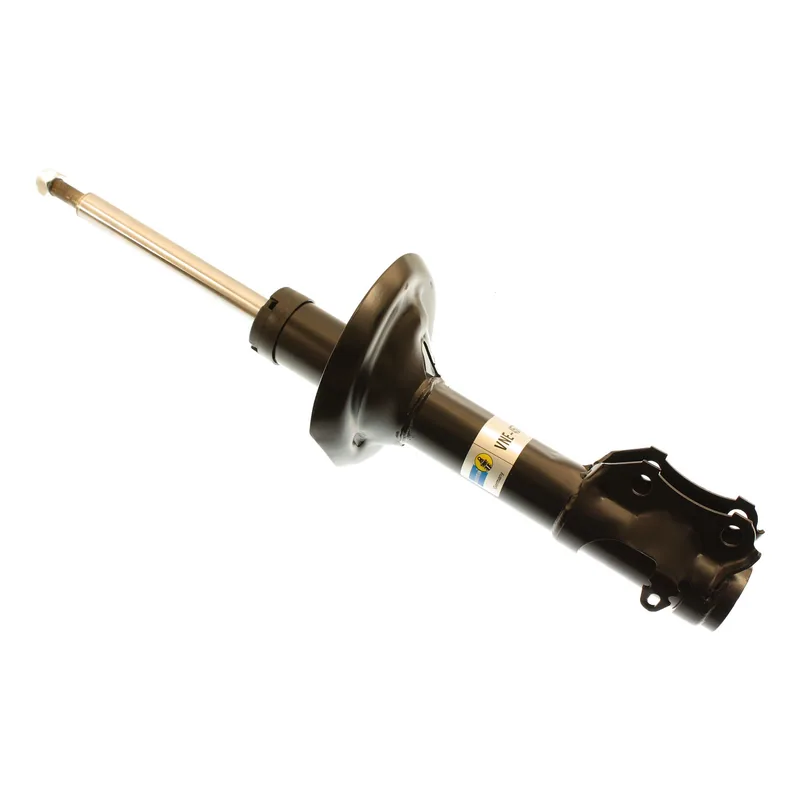

Bilstein 22-045768 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Volkswagen 357 413 031 H, Volkswagen 357 413 031 L, Volkswagen 357 413 031 Q, Volkswagen 357 413 031 R, Volkswagen 357 413 031 S
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 61 × 20 × 16 cm, 4.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
15 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen Golf | 1995 | GTI VR6 | Front | All |
|
| Volkswagen Jetta | 1995 | GLX | Front | All |
|
| Volkswagen Jetta | 1994 | GLX | Front | All | — |
| Volkswagen Passat | 1997 | GLX, TDI | Front | All | — |
| Volkswagen Passat | 1996 | GLS, GLX, TDI | Front | All | — |
| Volkswagen Passat | 1995 | GLS, GLX | Front | All | — |
| Volkswagen Passat | 1994 | GLX | Front | All | — |
| Volkswagen Passat | 1993 | GL, GLX | Front | All | — |
| Volkswagen Passat | 1992 | CL, GL | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.85
- Collapsed Length (in)
- 14.04
- Extended Length (mm)
- 529.5
- Collapsed Length (mm)
- 356.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 50mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
