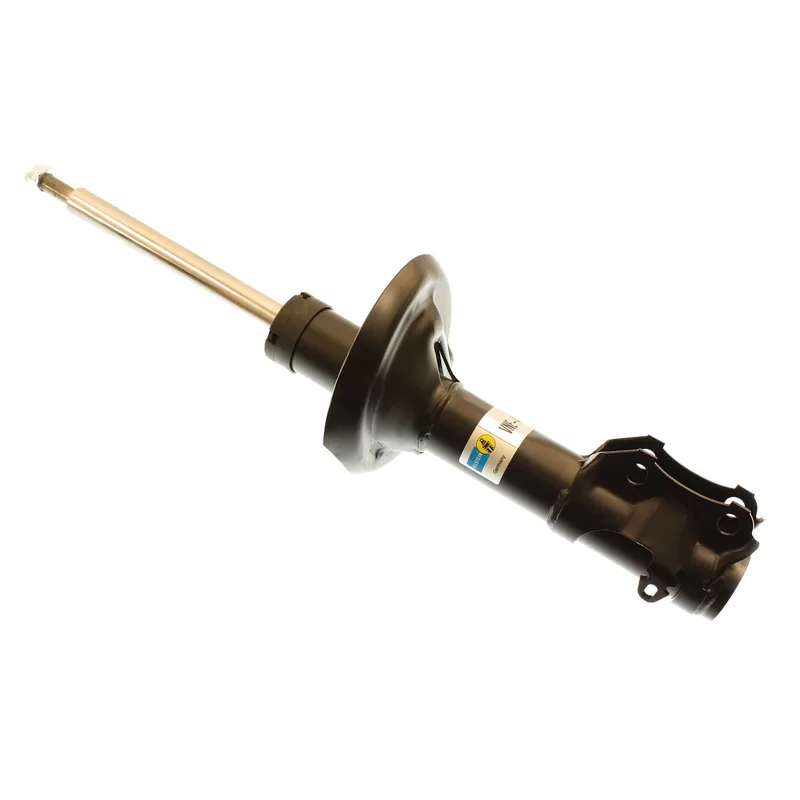

Bilstein 22-041234 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Volkswagen 1H0 413 031 F, Volkswagen 357 413 031 A, Volkswagen 357 413 031 C, Volkswagen 357 413 031 J, Volkswagen 535 413 031 D
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 60 × 20 × 16 cm, 4.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
5 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen Corrado | 1990–1992 | G60 | Front | All | — |
| Volkswagen Passat | 1990–1991 | GL | Front | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.37
- Collapsed Length (in)
- 12.83
- Extended Length (mm)
- 517.5
- Collapsed Length (mm)
- 326.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
- Outer Housing Diameter
- 50mm
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
