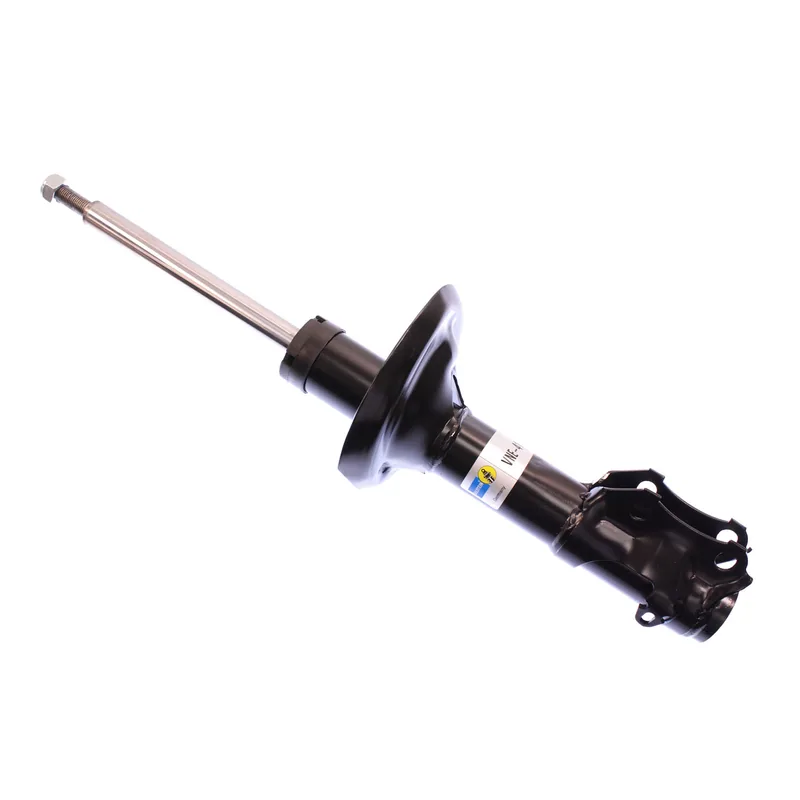

Bilstein 22-041142 B4 OE Replacement Strut Assembly

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Volkswagen 176 413 031 E, Volkswagen 176 413 031 G, Volkswagen 191 413 031 J, Volkswagen 191 413 031 K, Volkswagen 191 413 031 Q, Volkswagen 191 413 031 R, Volkswagen 6KO 413 031 B
Country of origin: Romania
Box: Ships in Bilstein's own box (about 60 × 20 × 16 cm, 4.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

59 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Volkswagen Golf	Years	1994	Submodels	GL, Limited Edition	Position	Front	Drive / body / engine	All	Notes	Base Axle
Volkswagen Golf	Years	1993	Submodels	GL	Position	Front	Drive / body / engine	All	Notes	Base Axle
Volkswagen Golf	Years	1990–1992	Submodels	GL, GTI 16-Valve, GTI 8-Valve	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Golf	Years	1989	Submodels	Base, GL, GTI 16-Valve	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Golf	Years	1988	Submodels	Base, GL, GT, GTI 16-Valve	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Golf	Years	1987	Submodels	GL, GT, GTI, GTI 16-Valve	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Golf	Years	1985–1986	Submodels	Base, GTI	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Jetta	Years	1994	Submodels	GL, GLS, Limited Edition	Position	Front	Drive / body / engine	All	Notes	Base Axle
Volkswagen Jetta	Years	1993	Submodels	GL	Position	Front	Drive / body / engine	All	Notes	Base Axle
Volkswagen Jetta	Years	1990–1992	Submodels	Carat, GL, GLI 16-Valve	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Jetta	Years	1988–1989	Submodels	Base, Carat, GL, GLI 16-Valve	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Jetta	Years	1987	Submodels	Base, GL, GLI, GLI 16-Valve, Wolfsburg Edition	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only
Volkswagen Jetta	Years	1985–1986	Submodels	Base, GL, GLI	Position	Front	Drive / body / engine	All	Notes	For Bolted Struts Only

Specifications

As Bilstein publishes them.

Extended Length (in): 20.37
Collapsed Length (in): 12.83
Extended Length (mm): 517.5
Collapsed Length (mm): 326.0
Upper Mount Type: Stem
Lower Mount Type: Bracket
Internal Design: Twintube
Finish: Black Paint
Boot Included: No
Spring Seat Included: Yes - Fixed
Outer Housing Diameter: 50mm

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
