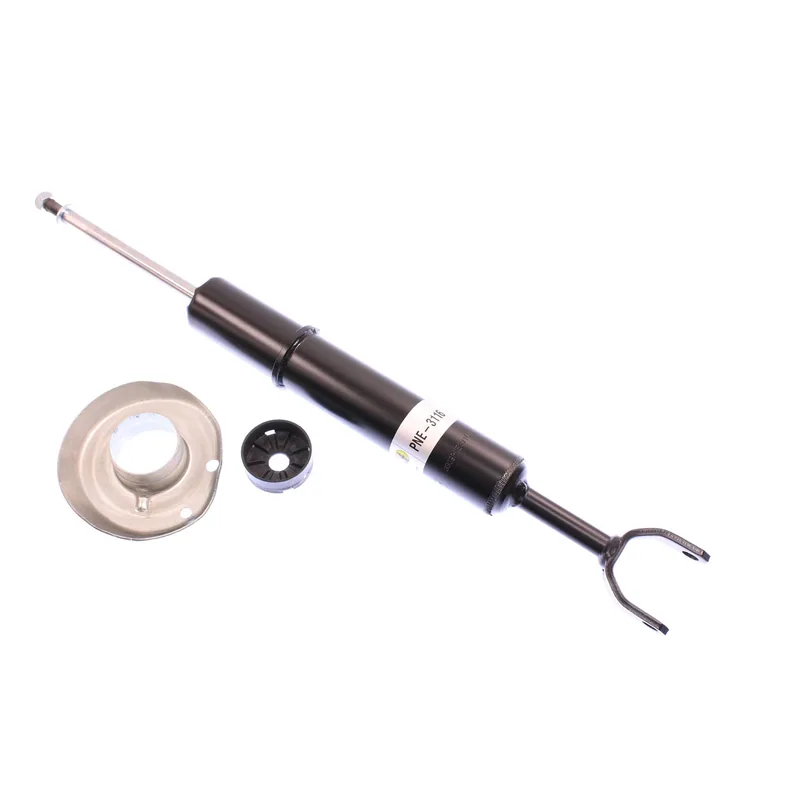

Bilstein 22-031167 B4 OE Replacement Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Volkswagen 3B0 413 031, Volkswagen 3B0 413 031 A, Volkswagen 4B0 412 031 AP, Volkswagen 4B0 412 031 BG, Volkswagen 4B0 412 031 CB, Volkswagen 4B0 412 031 F and 17 more
Volkswagen 4B0 412 031 G, Volkswagen 4B0 412 031 M, Volkswagen 4B0 412 031 N, Volkswagen 4C0 413 031, Volkswagen 8D0 413 031 AC, Volkswagen 8D0 413 031 AF, Volkswagen 8D0 413 031 AT, Volkswagen 8D0 413 031 BD, Volkswagen 8D0 413 031 BF, Volkswagen 8D0 413 031 BK, Volkswagen 8D0 413 031 BM, Volkswagen 8D0 413 031 D, Volkswagen 8D0 413 031 F, Volkswagen 8D0 413 031 G, Volkswagen 8D0 413 031 J, Volkswagen 8D0 413 031 L, Volkswagen 8D0 413 031 M
Country of origin: Romania
Box: Ships in Bilstein's own box (about 66 × 11 × 11 cm, 3.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

35 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Audi A4	Years	1999–2001	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A4	Years	1998	Submodels	Avant, Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A4	Years	1996–1997	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A4 Quattro (AWD)	Years	1998–2001	Submodels	Avant, Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A4 Quattro (AWD)	Years	1996–1997	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A6	Years	1998–2000	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A6 Quattro (AWD)	Years	2002–2004	Submodels	Base	Position	Front	Drive / body / engine	V6 3.0L	Notes	Standard Suspension
Audi A6 Quattro (AWD)	Years	2001–2004	Submodels	Base	Position	Front	Drive / body / engine	V6 2.7L	Notes	Standard Suspension
Audi A6 Quattro (AWD)	Years	2000	Submodels	Avant	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A6 Quattro (AWD)	Years	1999	Submodels	Avant, Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension
Audi A6 Quattro (AWD)	Years	1998	Submodels	Base	Position	Front	Drive / body / engine	All	Notes	Standard Suspension from Chassis/VIN 4B-W-100001
Volkswagen Passat	Years	2000	Submodels	4 Motion, GLS, GLX	Position	Front	Drive / body / engine	All	Notes	Standard Suspension to Chassis/VIN 3B-Y-200000
Volkswagen Passat	Years	1998–1999	Submodels	GLS, GLX	Position	Front	Drive / body / engine	All	Notes	Standard Suspension

Specifications

As Bilstein publishes them.

Extended Length (in): 23.43
Collapsed Length (in): 18.19
Extended Length (mm): 595.0
Collapsed Length (mm): 462.0
Upper Mount Type: Stem
Lower Mount Type: Clevis
Internal Design: Twintube
Finish: Black Paint
Boot Included: No
Spring Seat Included: Yes

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
