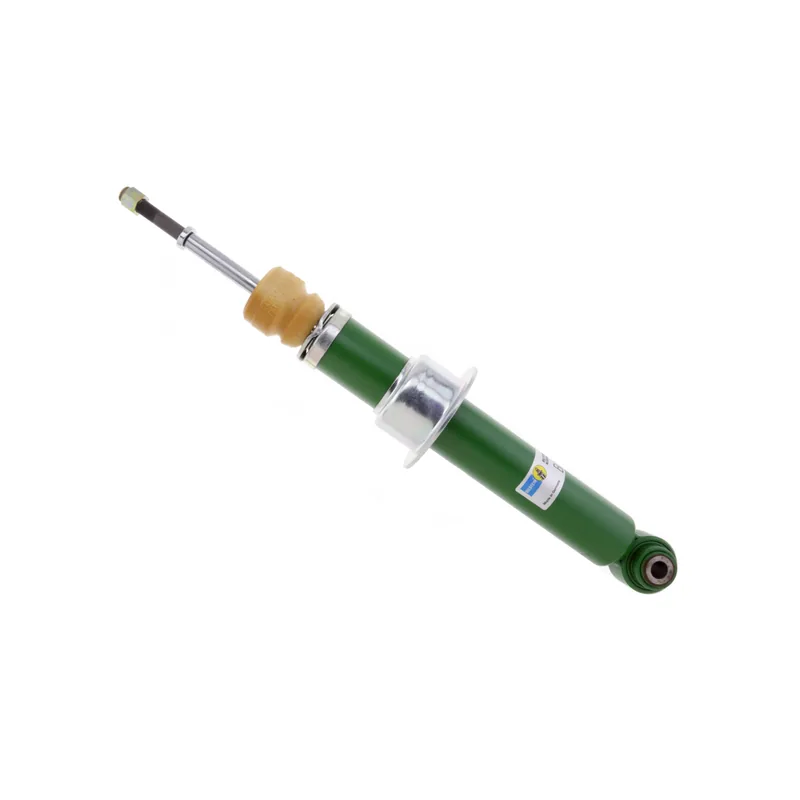

Bilstein 20-070649 B4 OE Replacement DampTronic Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Jaguar XR8 11181, Jaguar XR8 12983, Jaguar XR83 18080 BE
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 53 × 11 × 11 cm, 2.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
3 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jaguar S-Type | 2002 | Base | Rear | V6 3.0L |
|
| Jaguar S-Type | 2002 | Base | Rear | V8 4.0L |
|
| Jaguar S-Type | 2000–2001 | Base | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.17
- Collapsed Length (in)
- 13.43
- Extended Length (mm)
- 461.5
- Collapsed Length (mm)
- 341.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.1mm
- Internal Design
- Monotube
- Finish
- Green Paint
- Boot Included
- No
- Spring Seat Included
- Yes
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
