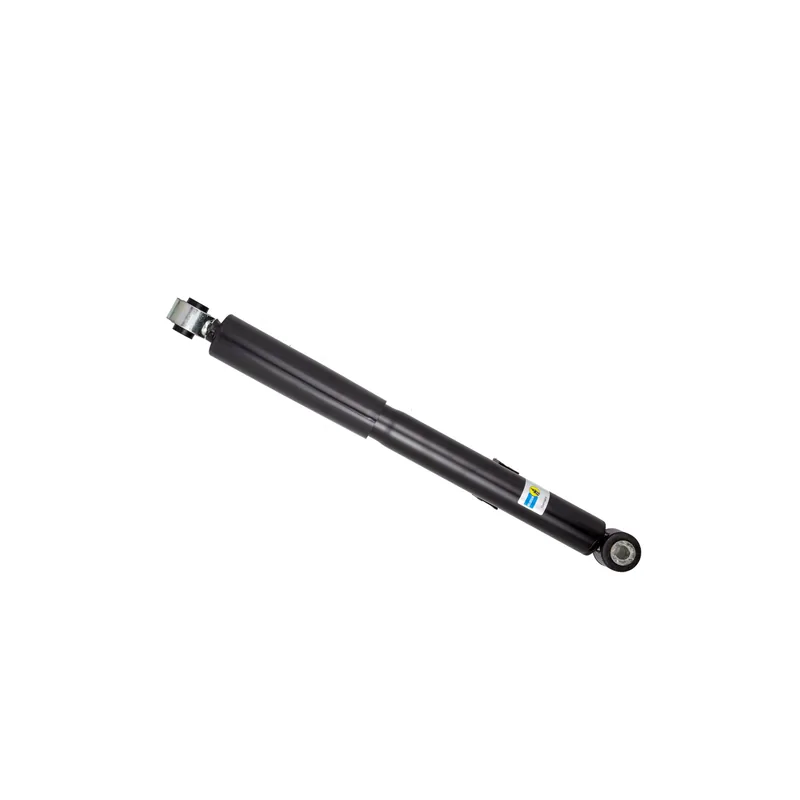

Bilstein 19-227740 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Mazda GS1D-28-700D, Mazda GS1D-28-700E, Mazda GS1D-28-700F, Mazda GS1D-28-700G, Mazda GS1M-28-700B, Mazda GS1M-28-700C and 8 more
Mazda GS1M-28-700D, Mazda GS1M-28-700E, Mazda GS3L-28-700B, Mazda GS3L-28-700C, Mazda GS3L-28-700D, Mazda GS4H-28-700B, Mazda GS4H-28-700C, Mazda GS4H-28-700D
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 61 × 11 × 11 cm, 2.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
10 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mazda 6 | 2009–2013 | S, i | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.28
- Collapsed Length (in)
- 14.11
- Extended Length (mm)
- 540.5
- Collapsed Length (mm)
- 358.5
- Upper Mount Type
- Eye 12.3mm
- Lower Mount Type
- Eye 14.5mm
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- Black Straight
- Spring Seat Included
- No
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
