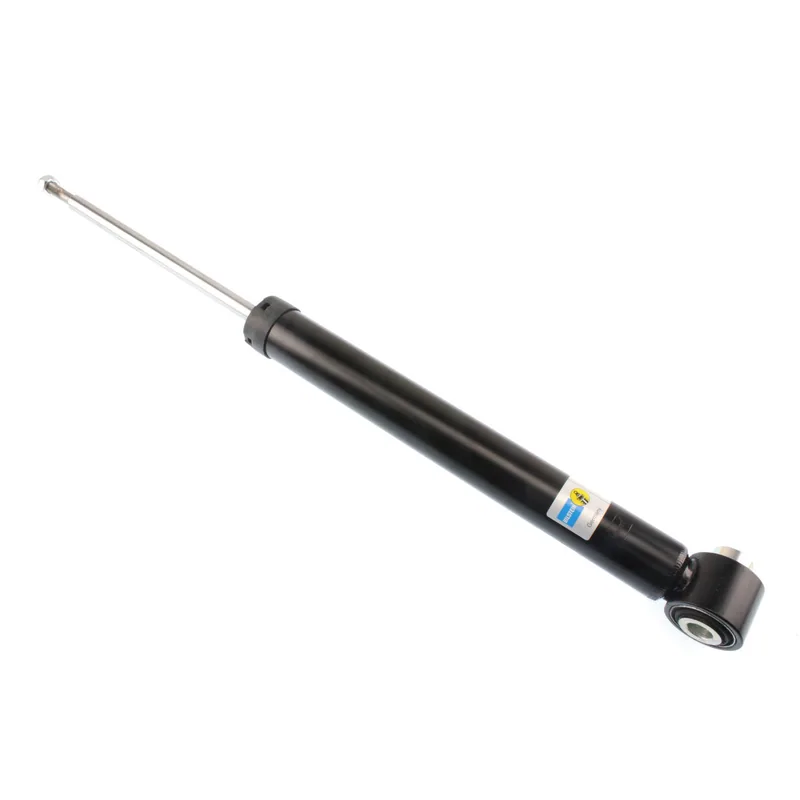

Bilstein 19-164489 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Audi 8E0 513 033 N, Audi 8E0 513 035 T, Audi 8E0 513 036 A, Audi 8E0 513 036 AA, Audi 8E0 513 036 AL, Audi 8E0 513 036 C, Audi 8E0 513 036 T
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 65 × 11 × 11 cm, 2.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
31 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi A4 | 2009 | Cabriolet | Rear | All |
|
| Audi A4 | 2007–2008 | Base, Cabriolet | Rear | All |
|
| Audi A4 | 2006 | Base | Rear | All |
|
| Audi A4 | 2005 | Base | Rear | L4 2.0L |
|
| Audi A4 Quattro (AWD) | 2009 | Cabriolet | Rear | All |
|
| Audi A4 Quattro (AWD) | 2007–2008 | Avant, Base, Cabriolet | Rear | All |
|
| Audi A4 Quattro (AWD) | 2006 | Avant, Base | Rear | All |
|
| Audi A4 Quattro (AWD) | 2005 | Avant, Base | Rear | L4 2.0L |
|
| Audi A4 Quattro (AWD) | 2005 | Avant, Base | Rear | V6 3.2L |
|
| Audi S4 | 2009 | Cabriolet | Rear | All | — |
| Audi S4 | 2005–2008 | Avant, Base, Cabriolet | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.03
- Collapsed Length (in)
- 15.63
- Extended Length (mm)
- 585.0
- Collapsed Length (mm)
- 397.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 15.4mm
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
