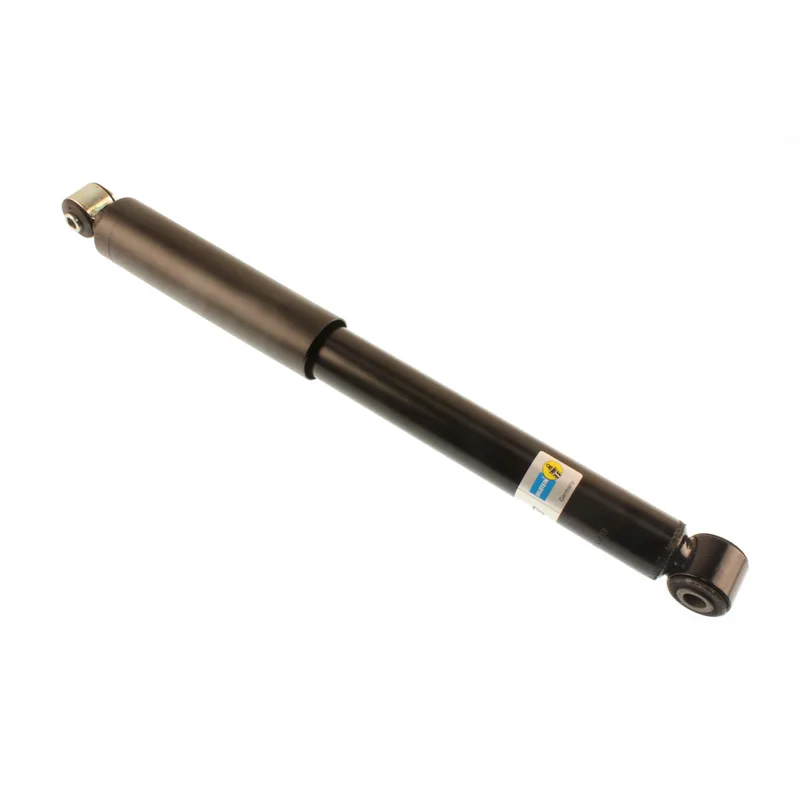

Bilstein 19-145570 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Audi 1J0 512 011 AJ, Audi 1J0 512 011 AK, Audi 8N0 512 011 AH, Audi 8N0 512 011 B, Audi 8N0 512 011 BD, Audi 8N0 512 011 C, Audi 8N0 512 011 G, Audi 8N0 512 011 H
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 58 × 11 × 11 cm, 1.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
8 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi TT Quattro (AWD) | 2006 | Base, Special Edition | Rear | Convertible | — |
| Audi TT Quattro (AWD) | 2001–2005 | Base | Rear | Convertible | — |
| Audi TT Quattro (AWD) | 2000 | Base | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.24
- Collapsed Length (in)
- 13.11
- Extended Length (mm)
- 514.0
- Collapsed Length (mm)
- 333.0
- Upper Mount Type
- Eye 10mm
- Lower Mount Type
- Eye 14.1mm
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- Black Straight
- Spring Seat Included
- No
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
