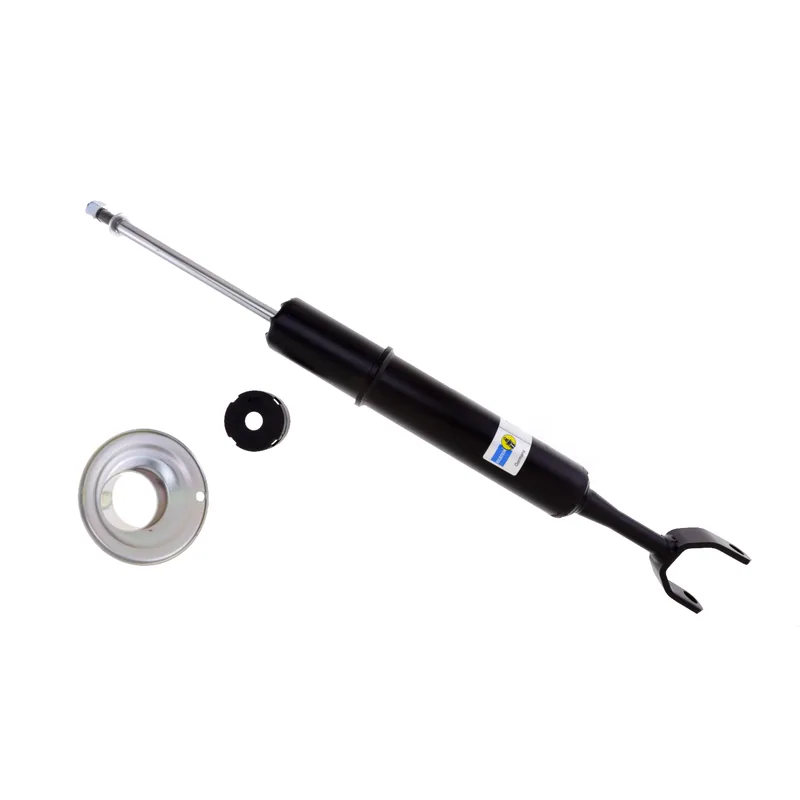

Bilstein 19-119922 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Volkswagen 3B0 413 031 AB, Volkswagen 3B0 413 031 AD, Volkswagen 3B0 413 031 P, Volkswagen 3B0 413 031 Q, Volkswagen 4B0 412 031 BD, Volkswagen 4B0 412 031 CD, Volkswagen 4B0 412 031 CE, Volkswagen 8E0 413 031 BM
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 66 × 11 × 11 cm, 3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
29 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volkswagen Passat | 2004–2005 | GL, GL TDI, GLS, GLS 4 Motion, GLS TDI, GLX, GLX 4 Motion | Front | All |
|
| Volkswagen Passat | 2003 | GL, GLS, GLX, GLX 4 Motion | Front | All |
|
| Volkswagen Passat | 2001–2002 | GLS, GLS 4 Motion, GLX, GLX 4 Motion | Front | All |
|
| Volkswagen Passat | 2000 | 4 Motion, GLS, GLX | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.35
- Collapsed Length (in)
- 18.15
- Extended Length (mm)
- 593.0
- Collapsed Length (mm)
- 461.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Clevis
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
