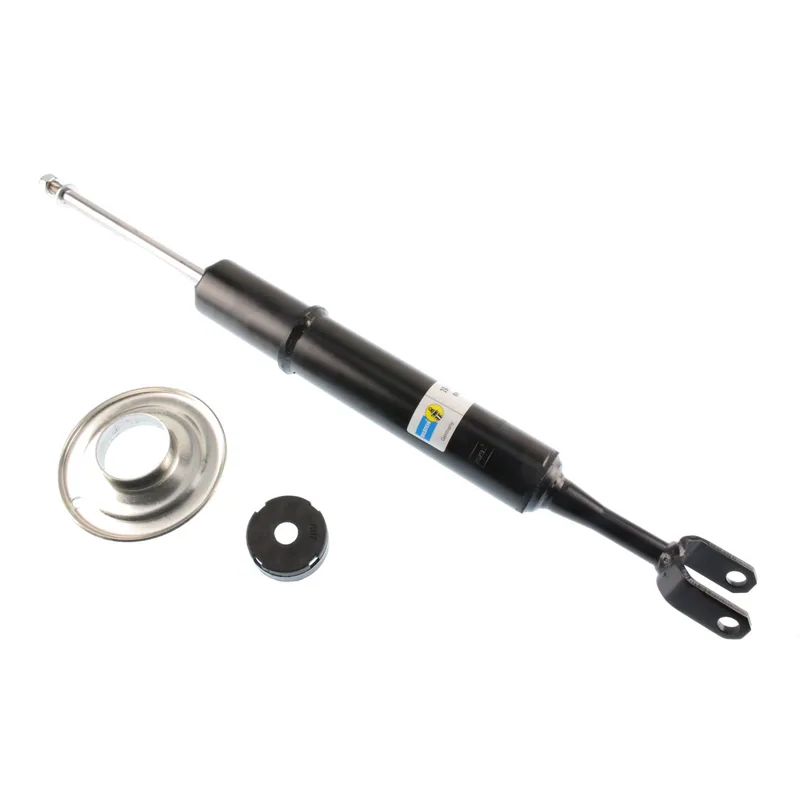

Bilstein 19-109510 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Audi 8E0 413 031 AN, Audi 8E0 413 031 BG, Audi 8E0 413 031 BH, Audi 8E0 413 031 BP, Audi 8E0 413 031 CE, Audi 8E0 413 031 CK, Audi 8E0 413 031 CL
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 69 × 11 × 11 cm, 3.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
19 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi A4 | 2005–2006 | Cabriolet | Front | All |
|
| Audi A4 | 2005 | Base | Front | L4 1.8L |
|
| Audi A4 | 2005 | Base | Front | V6 3.0L |
|
| Audi A4 | 2003–2004 | Base, Cabriolet | Front | All |
|
| Audi A4 | 2002 | Base | Front | All |
|
| Audi A4 Quattro (AWD) | 2005–2006 | Cabriolet | Front | All |
|
| Audi A4 Quattro (AWD) | 2005 | Avant, Base | Front | L4 1.8L |
|
| Audi A4 Quattro (AWD) | 2005 | Avant, Base | Front | V6 3.0L |
|
| Audi A4 Quattro (AWD) | 2004 | Avant, Base, Cabriolet | Front | All |
|
| Audi A4 Quattro (AWD) | 2002–2003 | Avant, Base | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.51
- Collapsed Length (in)
- 19.15
- Extended Length (mm)
- 622.5
- Collapsed Length (mm)
- 486.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Clevis
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
