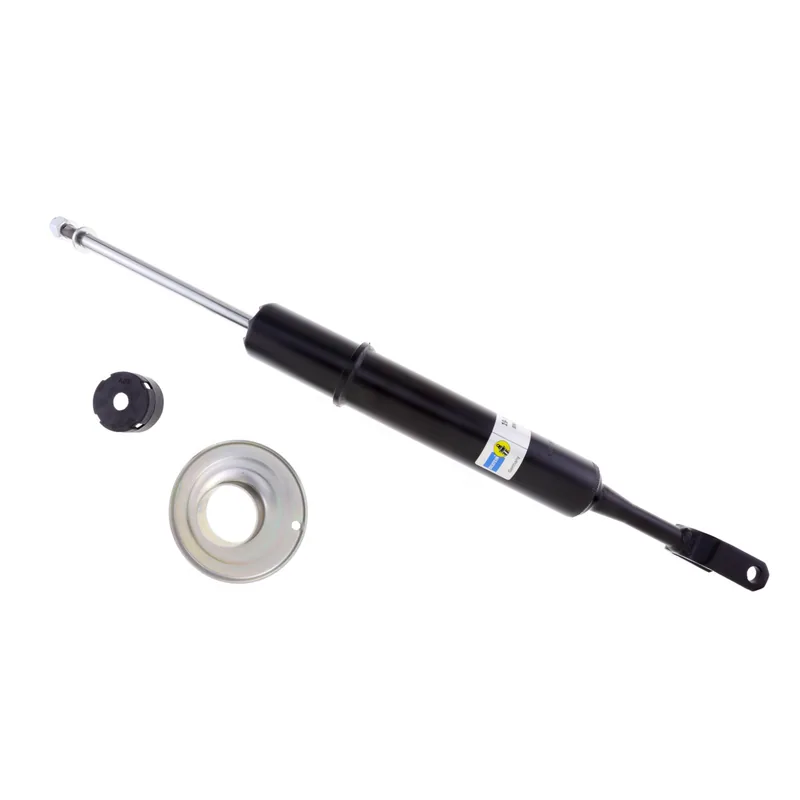

Bilstein 19-109497 B4 OE Replacement Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Audi 8E0 413 031 AL, Audi 8E0 413 031 BF, Audi 8E0 413 031 BS, Audi 8E0 413 031 CC, Audi 8E0 413 031 CM
- Country of origin
- Romania
- Box
- Ships in Bilstein's own box (about 69 × 11 × 11 cm, 3.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
19 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi A4 | 2005–2006 | Cabriolet | Front | All |
|
| Audi A4 | 2005 | Base | Front | L4 1.8L |
|
| Audi A4 | 2005 | Base | Front | V6 3.0L |
|
| Audi A4 | 2003–2004 | Base, Cabriolet | Front | All |
|
| Audi A4 | 2002 | Base | Front | All |
|
| Audi A4 Quattro (AWD) | 2005–2006 | Cabriolet | Front | All |
|
| Audi A4 Quattro (AWD) | 2005 | Avant, Base | Front | L4 1.8L |
|
| Audi A4 Quattro (AWD) | 2005 | Avant, Base | Front | V6 3.0L |
|
| Audi A4 Quattro (AWD) | 2004 | Avant, Base, Cabriolet | Front | All |
|
| Audi A4 Quattro (AWD) | 2002–2003 | Avant, Base | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.51
- Collapsed Length (in)
- 19.15
- Extended Length (mm)
- 622.5
- Collapsed Length (mm)
- 486.5
- Upper Mount Type
- Stem
- Lower Mount Type
- Fork
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
